Trang chủ > TILTA và HONTOO Chính Hãng > Cage rig và phụ kiện TILTA
Nucleus-M : Tilta Wireless Follow Focus System
Giá : call
Phí vận chuyển: Miễn phí trong nội ô thành phố
- Còn hàng : giao hàng từ 1 đến 3 ngày trên toàn quốc
Điểm nổi bật của sản phẩm :
------------------------------------------------------------------------------------------------------------
- Sản phẩm thương hiệu : Tilta
- Xuất xứ : Trung Quốc
- Màu sắc : Đen
- Chất liệu : Hợp kim nhôm
- Ưu điểm : tháo ráp nhanh , trợ thủ đắc lực cho các tay máy
- Thao tác di chuyển dễ dàng
- Sản phẩm mới 100% Fullbox

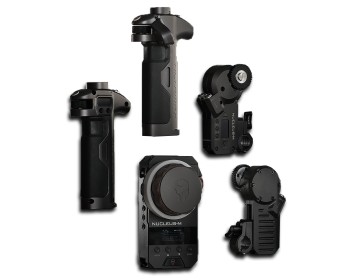

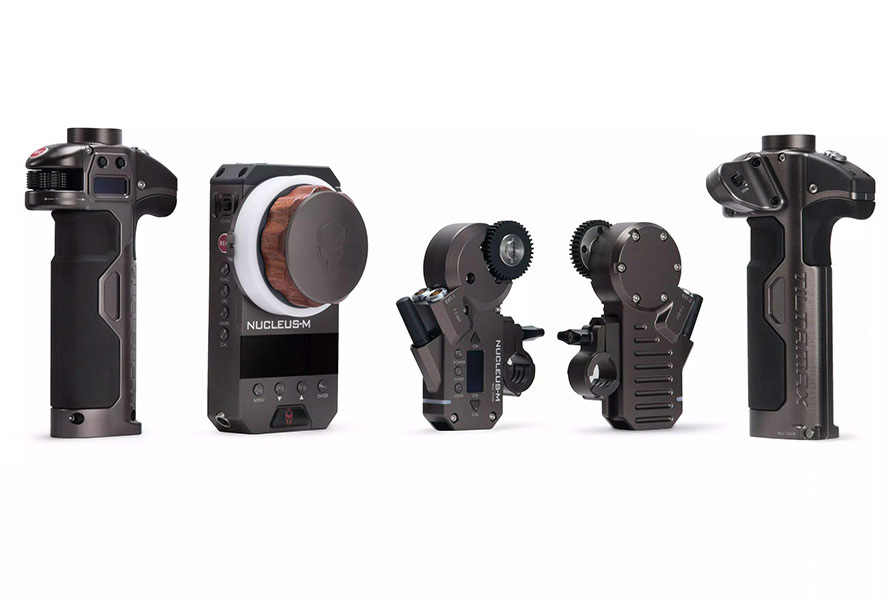

The Nucleus-M is a revolutionary wireless follow focus system. Have full control of focus, iris, and zoom on Cine lenses or compatible "cine-moded" DSLR lenses. Ideal for 3-axis gimbals, shoulder mounts systems, and drone shoots.
Batteries are NOT included.
Batteries are NOT included.
1. The Nucleus-M is a wireless 3 Channel system.
2. Connections between the FIZ hand unit and the two hand grips to the motors are completely wireless.

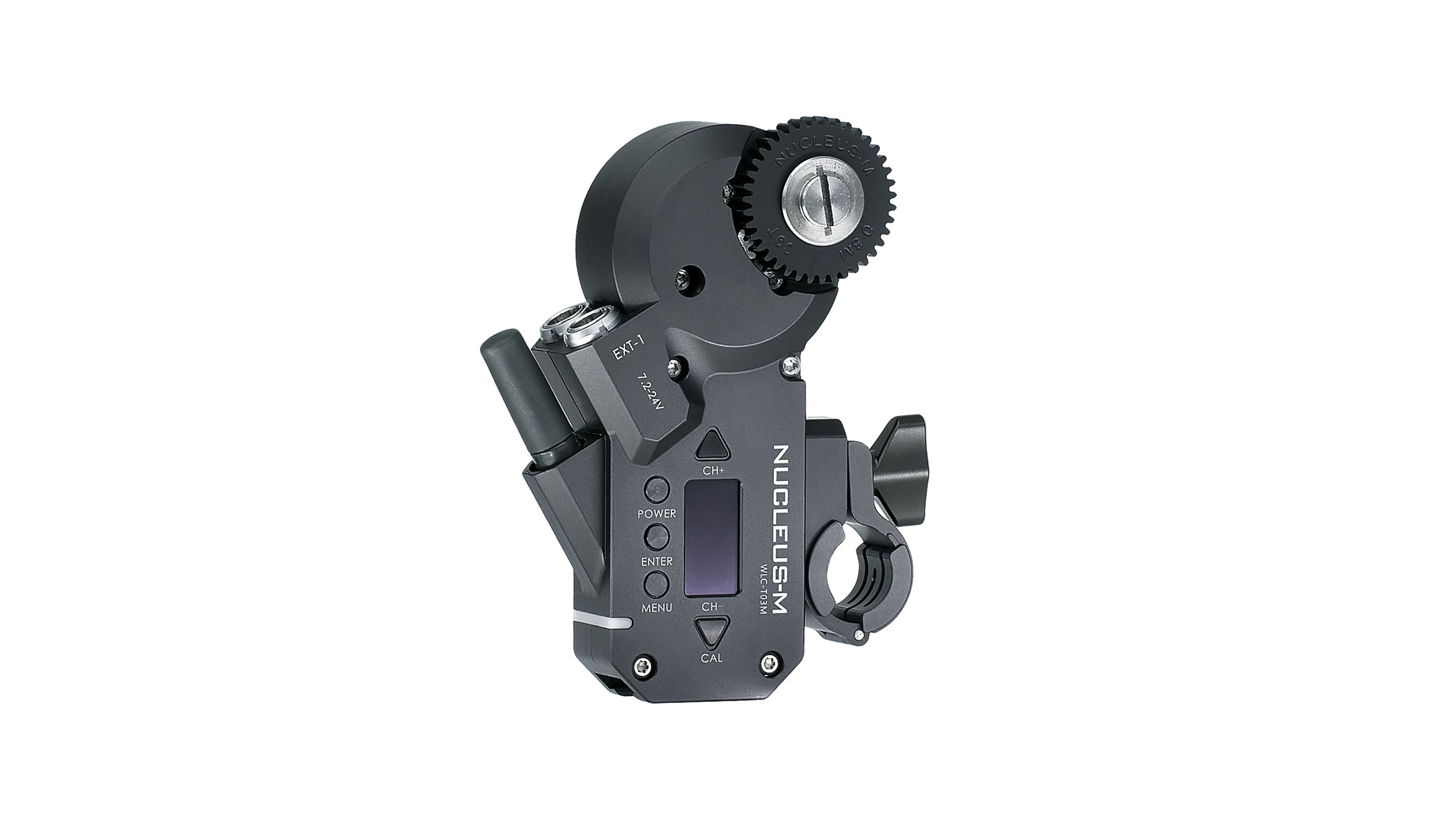

3. There is no MDR unit. Each motor has a wireless module that can receive a signal without the MDR, saving space and setup time.
4. A single motor can be powered directly from the camera’s battery though a 7-Pin to P-TAP cable then daisy chained via 7-Pin to 7-Pin cable to run additional motors.
5. There is no limit on the amount of motors an operator can attach per channel.

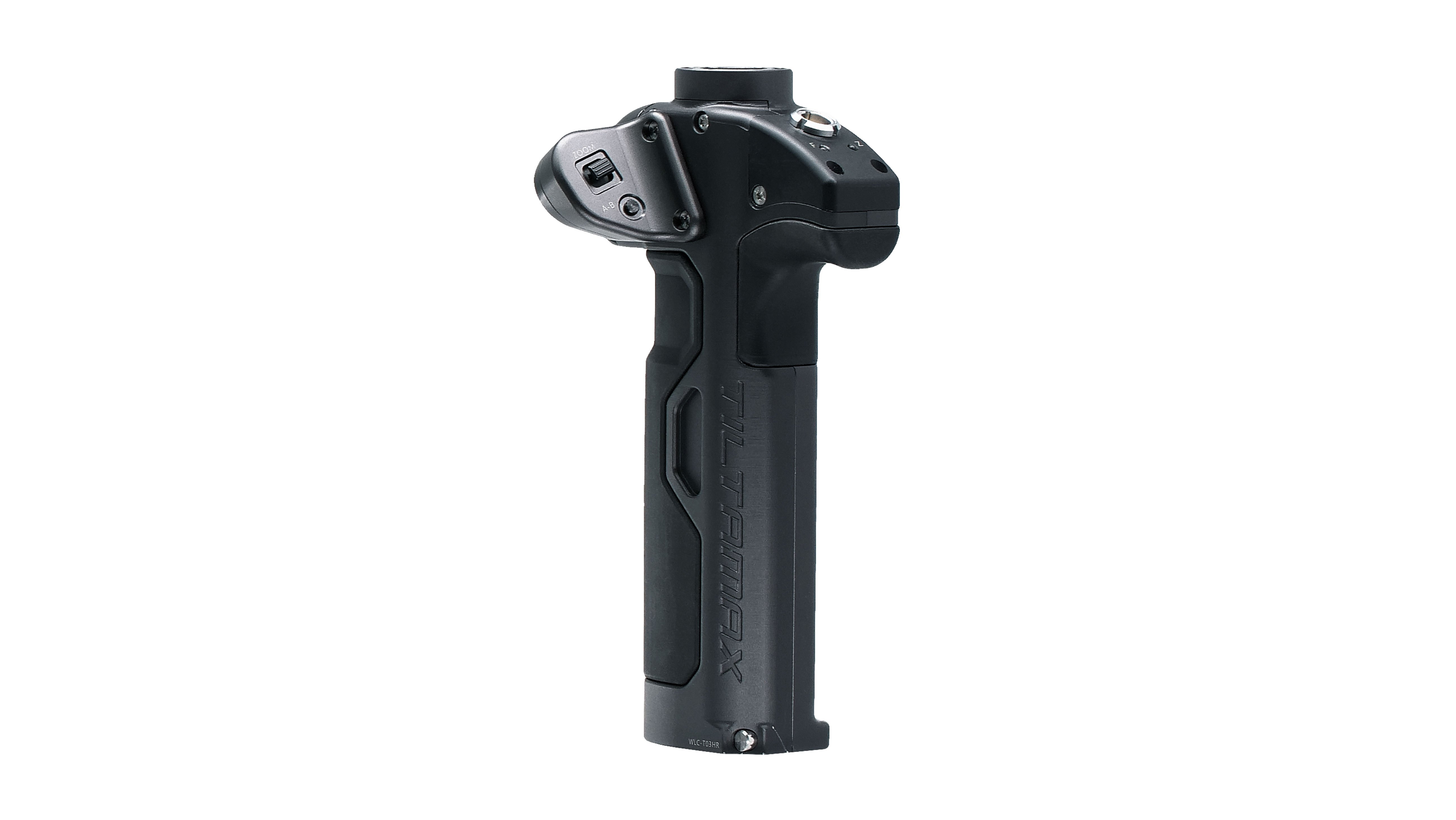

6. The two handle grips have a wireless range of 100 meters.
7. The FIZ hand unit has a wireless range of 500 meters. The signal from the FIZ hand unit can be signal boosted with an antenna accessory to 1 1/4 miles, which is ideal for long distance drone work.
8. Both hand grips and FIZ hand unit runs off (2) 18650 batteries. (Batteries are NOT included.)
9. When fully charged the batteries in the hand grips can last up to 2 days.
10. The batteries in the FIZ unit can last up to 10 hours.
11. FIZ hand unit is capable of controlling 3 channels – focus, zoom, and iris as well as overriding the hand grips.
12. 0.8 mod, 35-tooth, 32 pitch gear with a face width of 10mm
13. Motors can calibrate on lenses without hard stops – such as photo-lens with follow focus gears.
14. Motors fit standard 15mm and 19mm Rods
15. Compatible with the Gravity G1 Handheld Gimbal
2. Connections between the FIZ hand unit and the two hand grips to the motors are completely wireless.
3. There is no MDR unit. Each motor has a wireless module that can receive a signal without the MDR, saving space and setup time.
4. A single motor can be powered directly from the camera’s battery though a 7-Pin to P-TAP cable then daisy chained via 7-Pin to 7-Pin cable to run additional motors.
5. There is no limit on the amount of motors an operator can attach per channel.
6. The two handle grips have a wireless range of 100 meters.
7. The FIZ hand unit has a wireless range of 500 meters. The signal from the FIZ hand unit can be signal boosted with an antenna accessory to 1 1/4 miles, which is ideal for long distance drone work.
8. Both hand grips and FIZ hand unit runs off (2) 18650 batteries. (Batteries are NOT included.)
9. When fully charged the batteries in the hand grips can last up to 2 days.
10. The batteries in the FIZ unit can last up to 10 hours.
11. FIZ hand unit is capable of controlling 3 channels – focus, zoom, and iris as well as overriding the hand grips.
12. 0.8 mod, 35-tooth, 32 pitch gear with a face width of 10mm
13. Motors can calibrate on lenses without hard stops – such as photo-lens with follow focus gears.
14. Motors fit standard 15mm and 19mm Rods
15. Compatible with the Gravity G1 Handheld Gimbal
